Your first plugin.
From a file to a button.

01 / PREPARE THE FOLDER

Three files. No application checkout.

Create a folder called meu-plugin. Save the files below in it, using the exact names and UTF-8. Node.js 22 or later is needed to run this packager; the installed app already includes the runtime needed to use the ready-made plugin.

meu-plugin/
├── extension.json
├── index.cjs
└── empacotar.mjs

02 / DECLARE THE PLUGIN

The manifest describes what appears in PrumoGrid.

{
  "id": "exemplo.diagnostico",
  "name": "Diagnóstico do projeto",
  "publisher": "Exemplo PrumoGrid",
  "version": "1.0.0",
  "apiVersion": 1,
  "description": "Lista projetos e abre um PowerShell de diagnóstico no Projeto-demo.",
  "permissions": ["code.execute", "projects.read", "terminal.create"],
  "commands": [
    { "id": "listar-projetos", "title": "1. Mostrar projetos" },
    { "id": "abrir-diagnostico", "title": "2. Abrir diagnóstico" }
  ]
}

03 / REGISTER THE BEHAVIOR

Every declared ID gets a function.

PrumoGrid supplies api and calls activate when you execute the first command. Inside it, commands.register connects each ID to its callback. Register both commands from the manifest. Do not prefix command IDs with the plugin ID.

'use strict';
// SPDX-License-Identifier: Apache-2.0
// Troque pelo nome EXATO do projeto cadastrado no PrumoGrid.
const PROJECT_NAME = 'Projeto-demo';

exports.activate = (api) => {
  // Mesmo ID declarado em extension.json → commands[].id.
  api.commands.register('listar-projetos', async () => {
    const projects = await api.projects.list();
    const names = projects.map(project => project.name).join(', ');
    await api.window.showMessage(
      `Projetos: ${names || 'nenhum cadastrado'}`.slice(0, 900)
    );
  });

  api.commands.register('abrir-diagnostico', async () => {
    const projects = await api.projects.list();
    const matches = projects.filter(project => project.name === PROJECT_NAME);

    // Não escolhe outro projeto silenciosamente.
    if (matches.length !== 1) {
      await api.window.showMessage(
        `Cadastre exatamente um projeto chamado ${PROJECT_NAME}. ` +
        'Use Mostrar projetos para conferir os nomes.'
      );
      return;
    }

    // Abre um NOVO terminal, sem escrever nos que já estão em uso.
    await api.terminal.create({
      projectId: matches[0].id,
      title: 'Diagnóstico por plugin',
      command: "Write-Output 'PrumoGrid plugin OK'; Get-Location; $PSVersionTable.PSVersion"
    });
  });
};

This example looks for exactly Projeto-demo; it does not automatically use the selected project. It reports missing or duplicate names. To use another project, change PROJECT_NAME, rebuild the package and install it.

04 / BUILD THE PACKAGE

Combine manifest and code in a .prumoplugin.

Save the packager below too. It only uses built-in Node modules, checks basic fields, syntax and size, and creates a new file. PrumoGrid validates the package when you install it.

// SPDX-License-Identifier: Apache-2.0
// Node.js 22+. Sem dependências e sem acesso aos fontes do PrumoGrid.
import { readFileSync, writeFileSync } from 'node:fs';
import { join, resolve } from 'node:path';
import { fileURLToPath } from 'node:url';
import { Script } from 'node:vm';

export function createPackage(directory = import.meta.dirname) {
  const manifest = JSON.parse(readFileSync(join(directory, 'extension.json'), 'utf8'));
  const source = readFileSync(join(directory, 'index.cjs'), 'utf8');
  if (manifest.apiVersion !== 1 || !/^[a-z][a-z0-9-]{0,39}\.[a-z][a-z0-9-]{0,39}$/.test(manifest.id || '')
    || !/^\d+\.\d+\.\d+$/.test(manifest.version || '')) {
    throw new Error('Confira id, version e apiVersion no extension.json.');
  }
  // Apenas verifica sintaxe. Não executa nem atesta a segurança do plugin.
  new Script(source, { filename: 'index.cjs' });
  const json = JSON.stringify({ manifest, source }, null, 2) + '\n';
  if (Buffer.byteLength(json, 'utf8') > 2 * 1024 * 1024) {
    throw new Error('O pacote excede o limite de 2 MiB.');
  }
  return { manifest, json };
}

if (process.argv[1] && resolve(process.argv[1]) === fileURLToPath(import.meta.url)) {
  const { manifest, json } = createPackage();
  const filename = `${manifest.id.split('.')[1]}-${manifest.version}.prumoplugin`;
  const output = join(import.meta.dirname, filename);
  writeFileSync(output, json, { flag: 'wx' });
  console.log(`Pacote criado: ${output}`);
}

In PowerShell, enter the meu-plugin folder and run:

node .empacotar.mjs

Result: diagnostico-1.0.0.prumoplugin in the same folder. No npm install, token or API key is needed. The package is JSON containing manifest and source, up to 2 MiB; renaming a ZIP does not work.

05 / INSTALL AND TEST

Now the app recognizes your plugin.

1. Create a Projeto-demo folder and add it to PrumoGrid using + add projects…; check its name in the project panel.
2. Open Tools → Extensions → Install package… and choose diagnostico-1.0.0.prumoplugin.

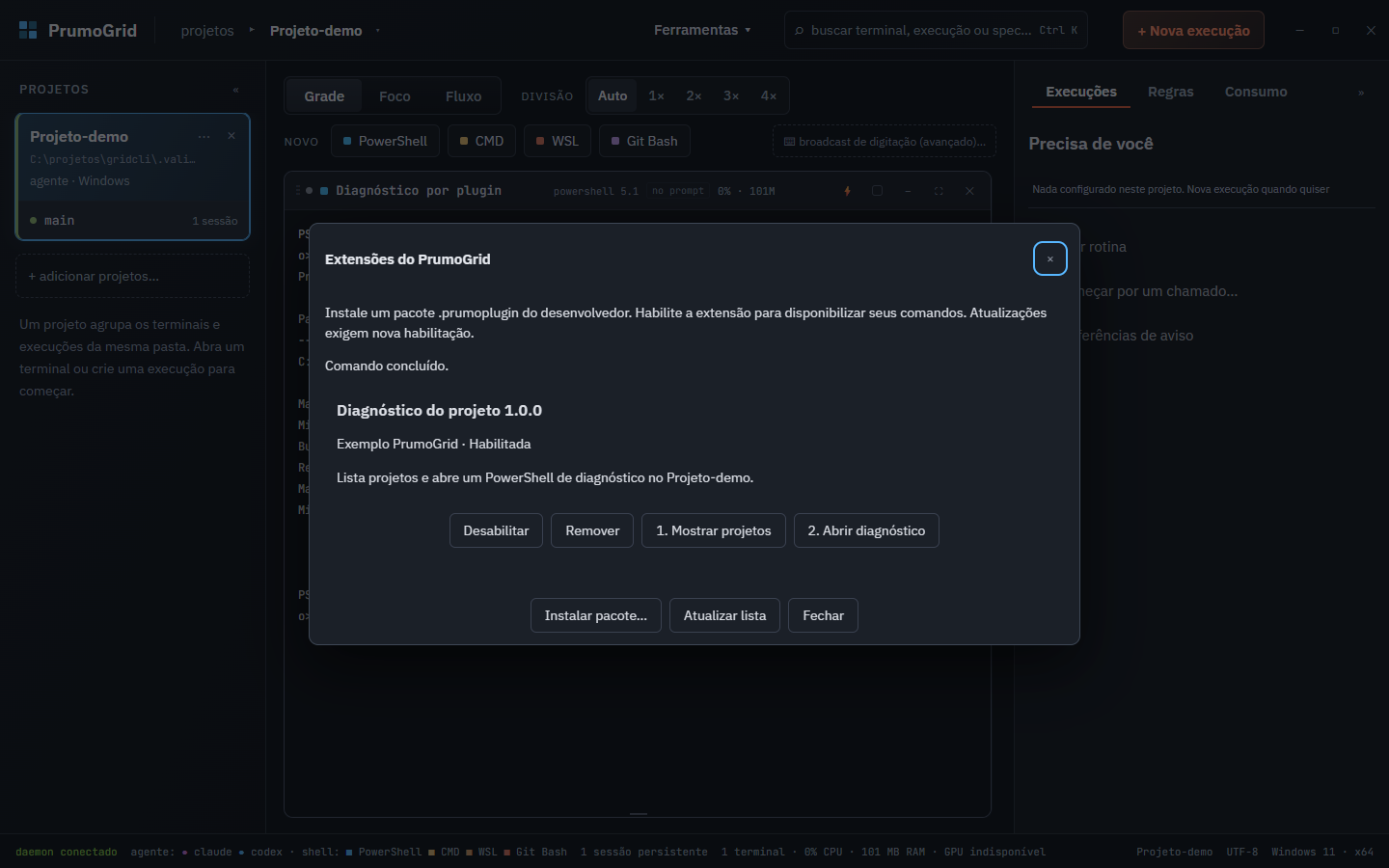

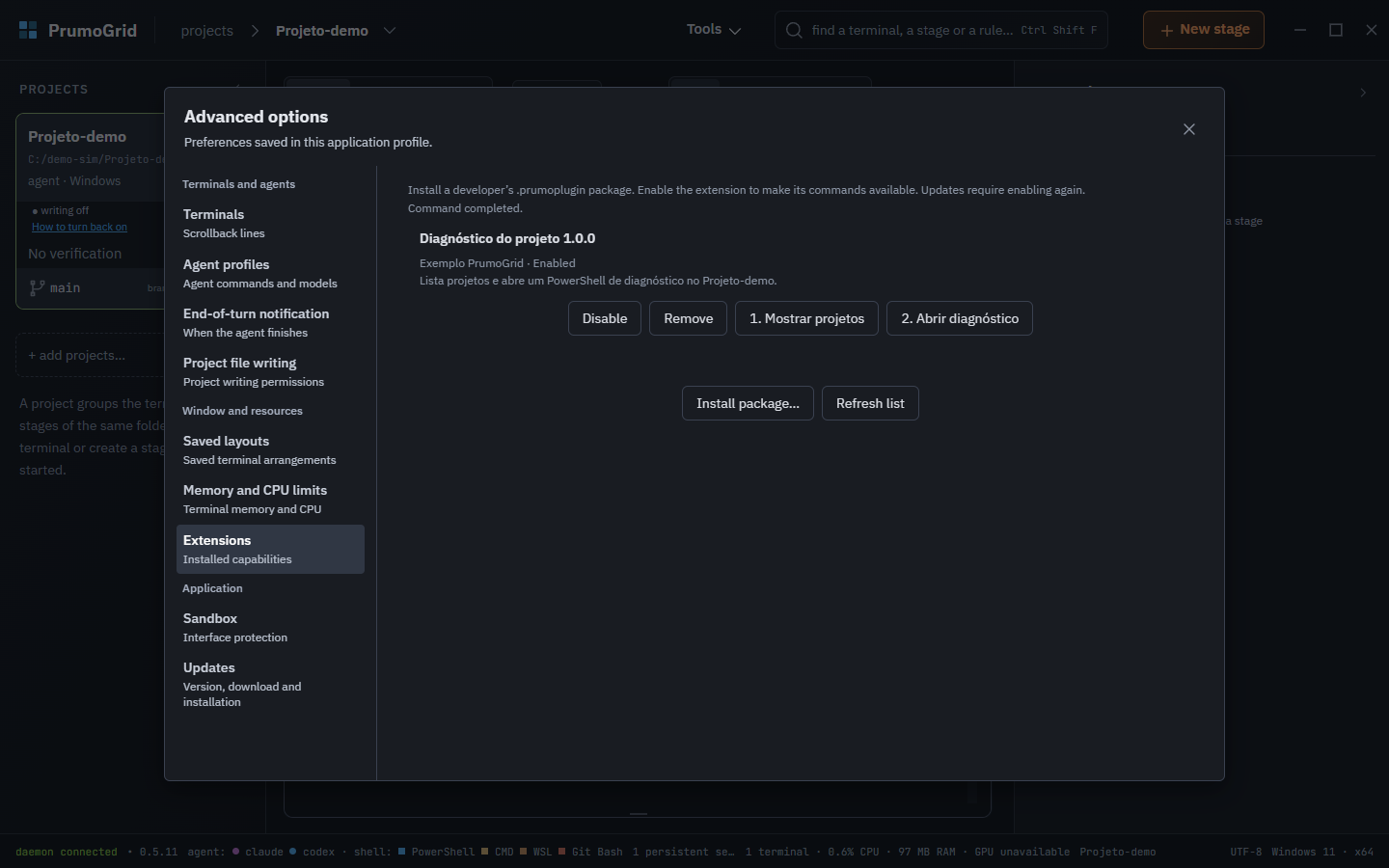

3. The Diagnóstico do projeto card starts disabled. Click Enable, review its requested capabilities and confirm if you trust the code.
4. Click 1. Mostrar projetos. The message should include Projeto-demo.

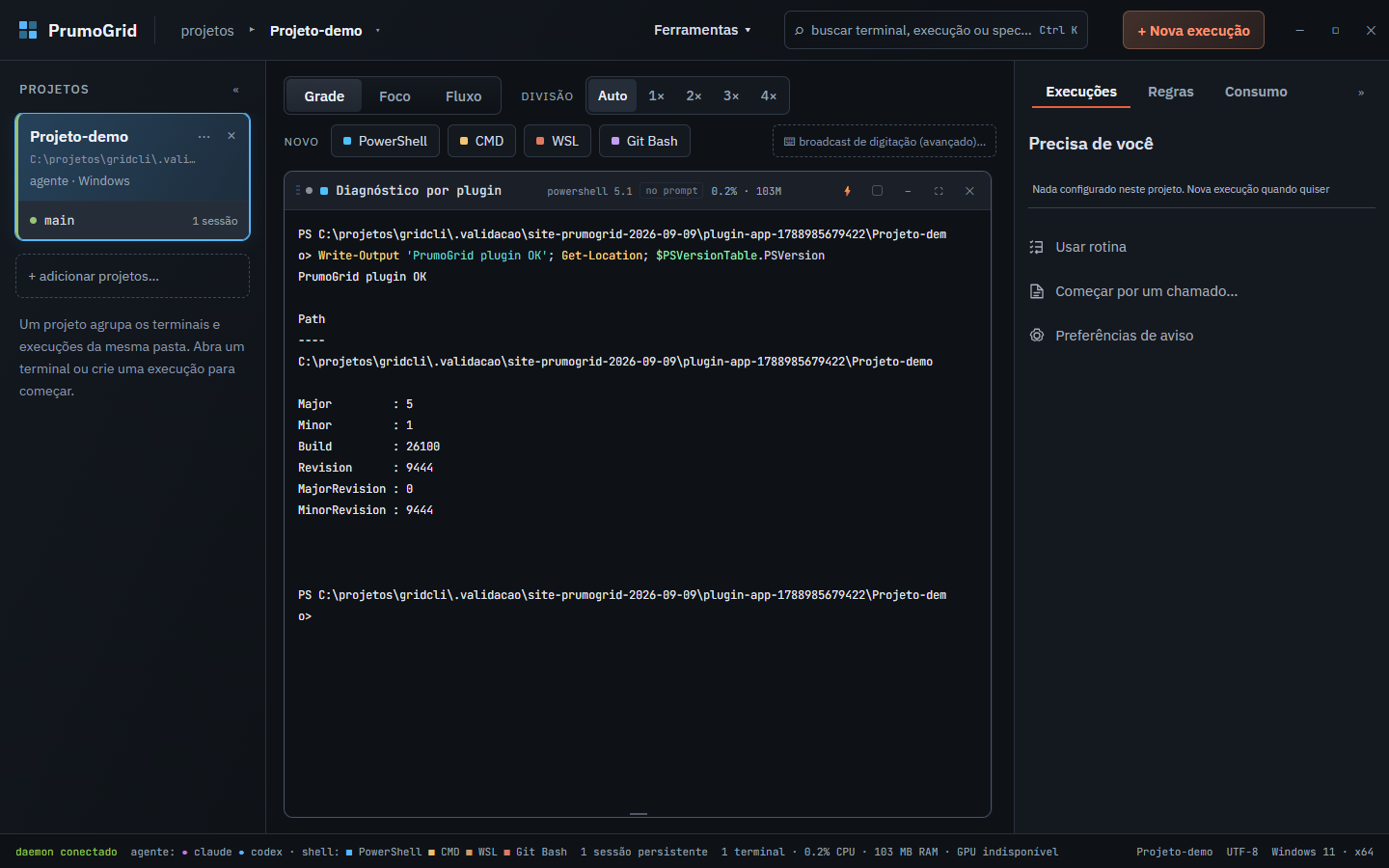

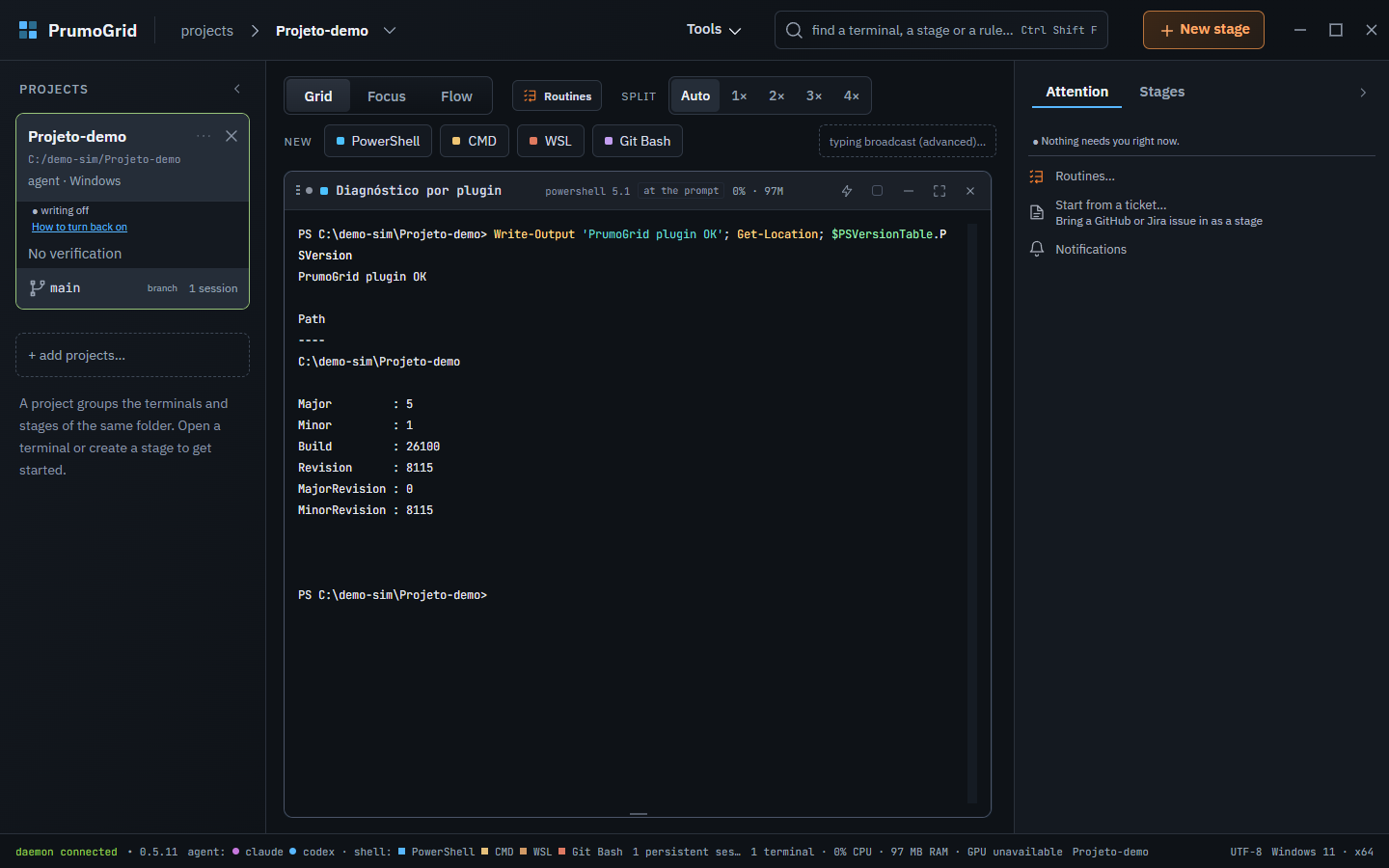

5. Click 2. Abrir diagnóstico. Close Extensions, select Projeto-demo and check the new Diagnóstico por plugin terminal.

Enlarge screenshot ↗

Enlarge screenshot ↗

06 / CHANGE AND DISTRIBUTE

Same ID. New version. Install again.

Edit the files, keep exemplo.diagnostico and increase version to 1.0.1. Run the packager, install diagnostico-1.0.1.prumoplugin and enable it again. Editing index.cjs does not change the installed copy. Refresh list only reloads installed packages; it does not rebuild your plugin.

Installation belongs to the current profile. You do not need to copy files into the application directory or edit internal storage. To distribute your own plugin, choose your own ID and share the .prumoplugin with instructions, a license and reviewable code. API 1 has no marketplace or automatic updates.

If it does not appear or run

• No Extensions menu: check that the running app is PrumoGrid 0.5.4 or later.
• Disabled buttons: enable the package, including after updates.
• Command not registered: compare commands[].id with commands.register exactly, and check exports.activate.
• Permission denied: declare the required API permission and install the new package.
• EEXIST while packaging: the output already exists. Increase the version to generate a new file.

Plugins run Node code with your account privileges. Manifest permissions control PrumoGrid APIs, not native Node capabilities. Only install code you trust. Do not put credentials in the package.
